July 3, 2026 · By Abraham Wix-Expert
Ever noticed a slight crack developing above your garage door? Maybe the brickwork looks like it's sagging just a bit? What you're seeing might be torsional lintel failure: and it's way more serious than most homeowners realize.
Let me explain what's happening up there, and more importantly, why most "fixes" you'll find are just temporary Band-Aids.
A lintel is that horizontal steel beam sitting above your garage door opening, supporting all those bricks. It's doing heavy-duty work: holding up thousands of pounds of masonry.
Here's where things get interesting (and problematic): these lintels don't just bend downward like you might expect. They twist.
That's the "torsional" part. Think of wringing out a wet towel. The steel lintel undergoes a similar rotational stress, twisting along its length as it tries to support the massive load above your garage door.
Most people assume a sagging lintel is simply bending under weight. Not quite.
When a lintel spans a wide opening like a double garage door (often 16-18 feet), it experiences both vertical deflection AND rotational forces. The brick veneer sits on the outer edge of the lintel flange. As the lintel flexes under load, that offset position creates torque: a twisting force.
Over years of thermal expansion and contraction, moisture infiltration, and constant gravitational pull, the lintel gradually rotates. The front edge drops while the back edge lifts. This rotation is torsional lintel failure.
Caution: By the time you see visible sagging or cracks, the lintel has already twisted significantly. The damage is well underway.
Be aware of these telltale indicators:
Stair-step cracking in the brickwork above the garage door
A visible sag or bow in the brick line
Mortar joints that appear wider at the bottom than the top
Vertical cracks near the corners of the garage opening
Bricks that seem to be "leaning" forward
Don't confuse this with settling cracks or minor cosmetic issues. Torsional lintel failure is a structural problem that gets progressively worse.
Here's what frustrates me about most garage lintel repair approaches: they ignore the root cause.
Standard "repairs" typically involve:
Grinding out mortar and repointing
Installing a surface-mounted angle iron
Jacking up the sagging section temporarily
These methods might make the wall look better for a year or two, but they don't stop the twisting. The lintel continues rotating, and your "repair" fails again.
Tip: Any repair that doesn't mechanically lock the lintel against rotation is temporary at best.
Some contractors will suggest installing a header beam inside your garage. While this can provide support, it doesn't address the torsional movement of the existing steel lintel. The twisting continues, and so does the damage to your brickwork.

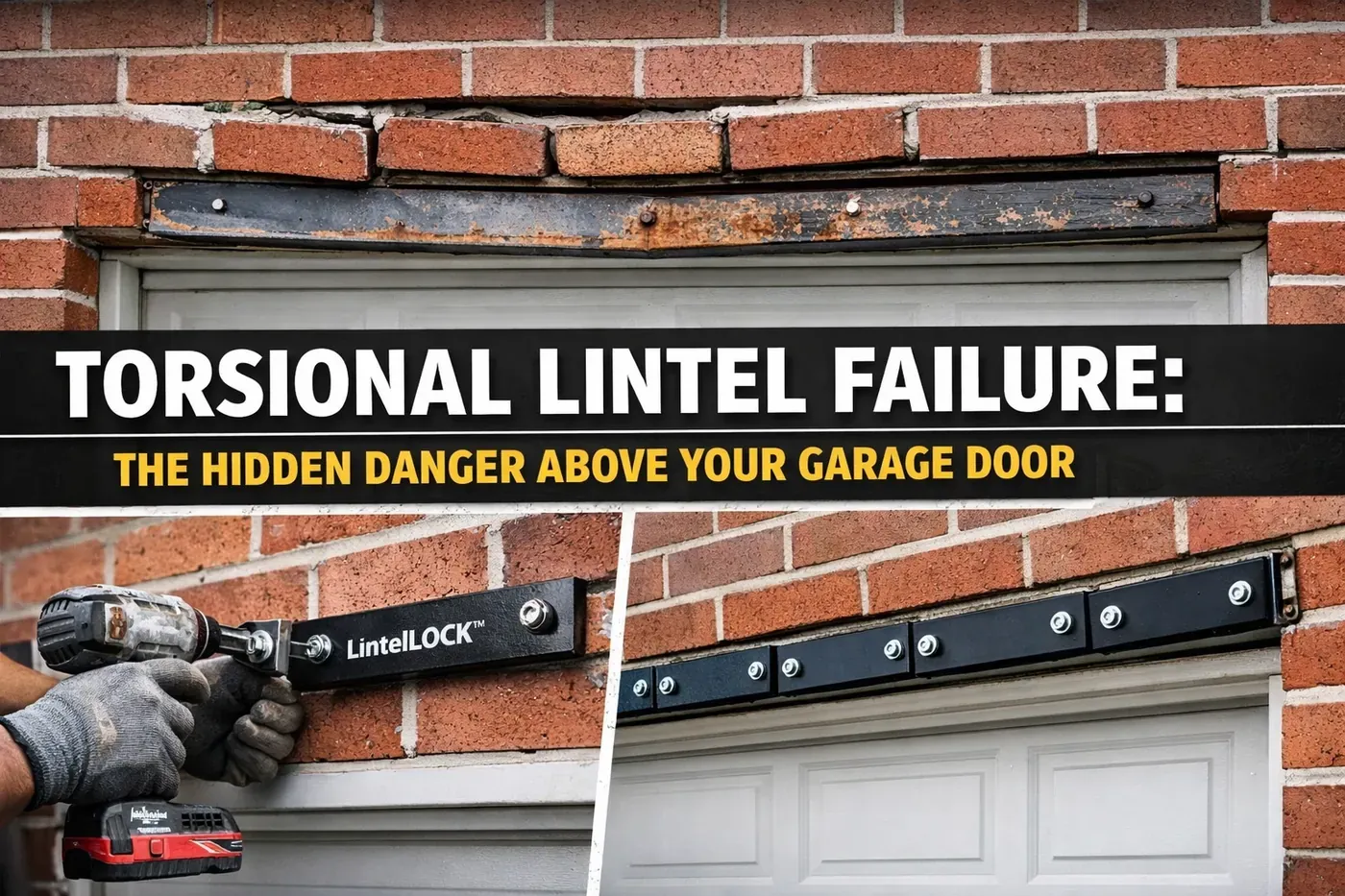

After seeing countless failed repairs, we developed the LintleLOCK™ system specifically to solve torsional lintel failure permanently.
Here's how it works:
The system installs a mechanical lock inside the airspace between your brick veneer and the structural wall. This isn't a cosmetic fix or a support beam tacked onto the surface. It's a structural intervention that physically prevents the lintel from rotating.
The LintleLOCK™ creates a rigid connection point that:
Arrests the twisting motion at the source
Redistributes the load properly across the lintel
Maintains the structural integrity of your brick veneer
Provides permanent correction without interior modifications
Think of it as putting a lock on a door: once engaged, rotation stops completely. The lintel can no longer twist because it's mechanically restrained in the airspace.
The airspace between your brick and your home's structural wall is where the real action happens. That's where the lintel exists, where it deflects, and where it twists.
Any repair that doesn't access this critical zone is working around the problem, not solving it.
The LintleLOCK™ system positions reinforcement precisely where the torsional forces occur. We're not guessing: we're engineering a solution at the exact point of failure.
Consider this: surface-mounted repairs can't prevent rotation because they're not connected to the actual pivot point. It's like trying to stop a door from swinging by pushing on the door frame instead of the hinges.
A proper repair using the LintleLOCK™ system costs more upfront than slapping on some mortar and calling it fixed. But let's talk real numbers.
Homeowners who choose temporary repairs often face:
Repeat repair costs every 3-5 years
Progressive structural damage to surrounding brickwork
Decreased home value due to visible defects
Potential safety hazards from falling bricks
A permanent solution costs less over time. More importantly, it protects your home's structural integrity and maintains curb appeal.
Tip: When evaluating repair proposals, ask contractors specifically how they prevent torsional rotation. If they can't explain the mechanical lock mechanism, they're not offering a permanent fix.
Torsional lintel failure is progressive. The longer you wait, the more extensive the damage becomes.
What starts as a hairline crack can evolve into:
Major structural shifting requiring complete rebuilding
Water infiltration leading to interior damage
Dangerous loose bricks posing injury risks
Compromised structural support for upper-story walls
Early intervention with proper garage lintel repair saves money and prevents catastrophic failure.
If you're seeing any warning signs above your garage door, get a professional evaluation. Not every crack means lintel failure, but you need someone who understands torsional stress and can diagnose the actual problem.
At Champion Brick Repair, we've specialized in solving torsional lintel failure across Texas. We'll assess your specific situation and explain exactly what's happening with your lintel: no sales pressure, just straight answers.
Ready to fix the problem permanently? Contact us today for a thorough evaluation.
And if you've worked with us before, we'd love to hear about your experience. Leave us a Google review to help other homeowners find the permanent solution they need.
